Scheidingswand met enkele plaat aan elke kant - LaDura Premium - 75mm profielen - 105mm wanddikte - minerale wol (60mm)

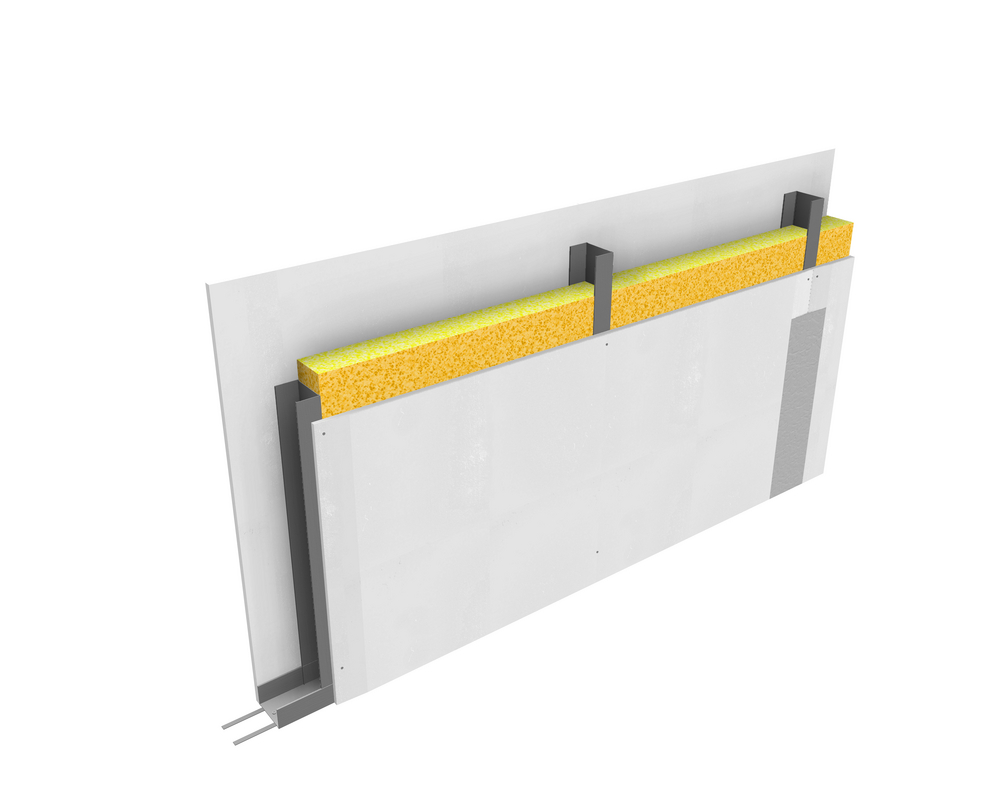

Een lichte, onbelaste scheidingswand bestaande uit een geraamte van metalen profielen met aan beide zijden een stootvaste, brandwerende gipsplaat met verhoogde vochtweerstand. In de spouw wordt minerale wol isolatie (glas- of steenwol) voorzien.

Systeemprestaties en details

Totale Wanddikte: 105 mm
Profiel maat: 75 mm
Nominaal gewicht (kg/ m²): 35 kg/m²
Hoogte in normale omstandigheden – toepassingsgebied 1: 4000 mm
Hoogte in normale omstandigheden – toepassingsgebied 2: 4000 mm
Hartafstand hoofddraagprofielen (mm): 600 mm
Brandweerstandsklasse: EI 60
Brandrapport: 2012-Efectis-R9103.251
Maximale hoogte: 4000 mm
Geluidsreductiewaarde (Rw): 51 dB
Rw+C: 48 dB
Rw+Ctr: 42 dB
Akoestisch rapport: Peutz A2539-4D-RA

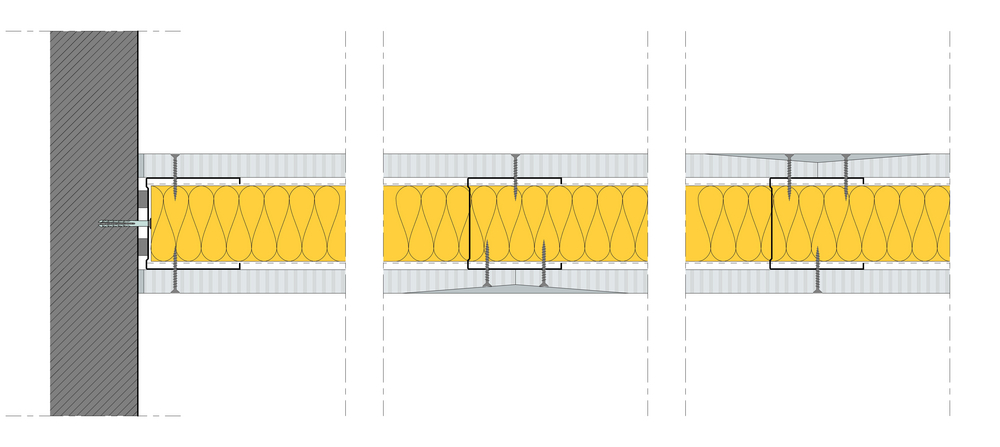

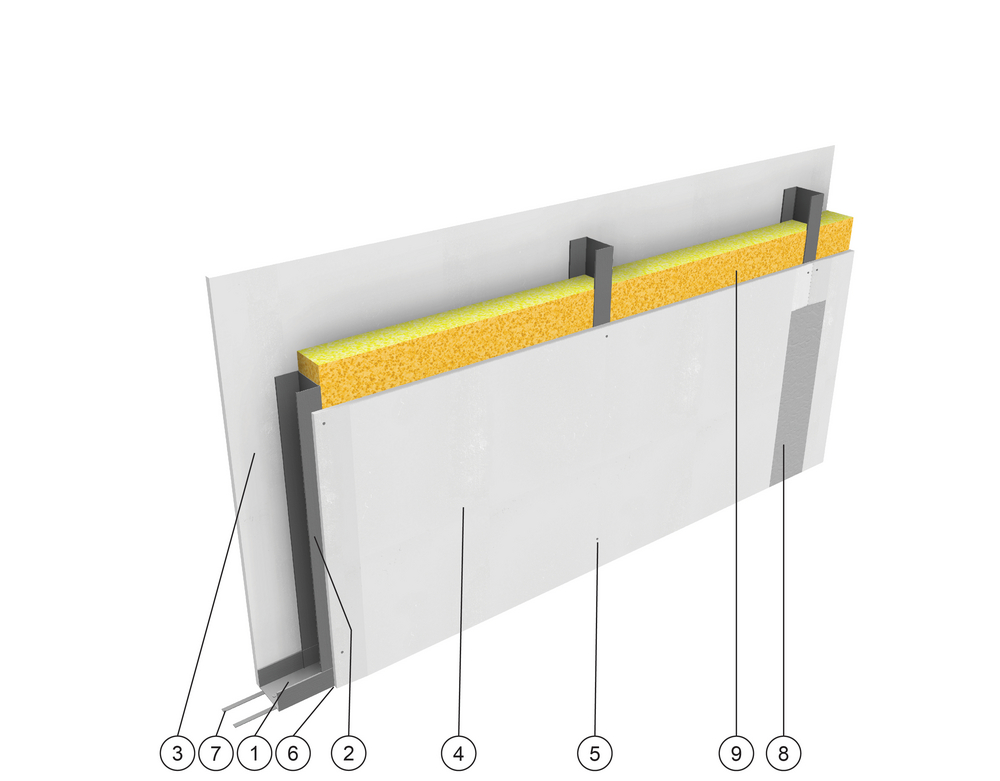

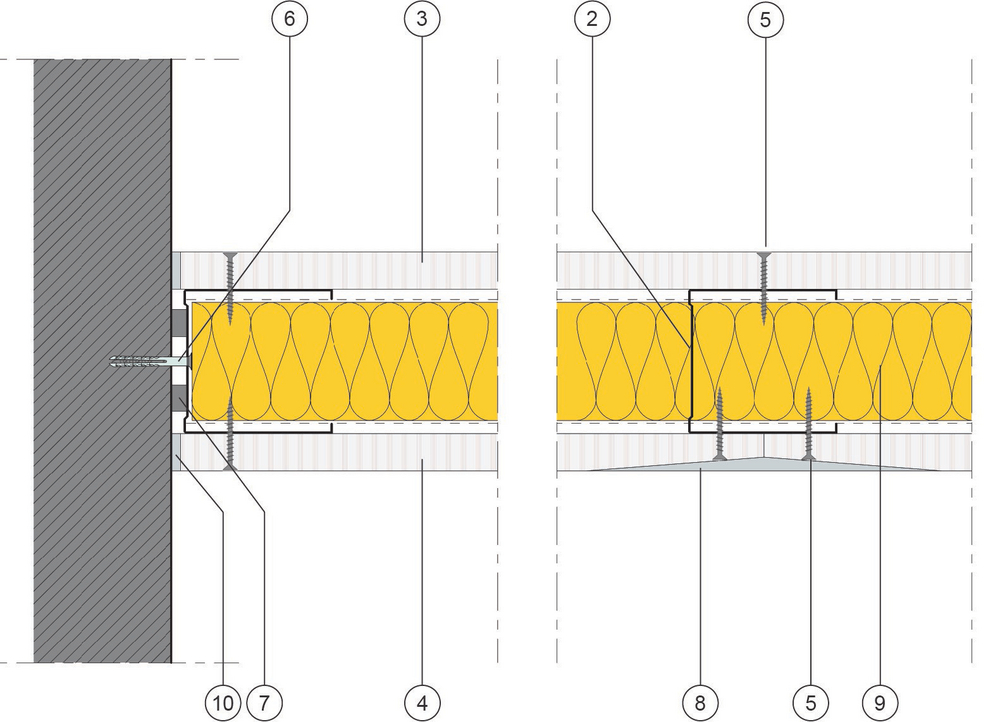

Opbouw:

1. Horizontaal profiel enkel UW 75
2. Verticaal profiel enkel CW 75 h.o.h. 600 mm
3. 1 x 15 mm LaDura Premium gipsplaat type SiniatDFH1IR volgens EN520
4. 1 x 15 mm LaDura Premium gipsplaat type SiniatDFH1IR volgens EN520
5. Siniat HD schroeven (o.g.); 25 mm h.o.h. 250 mm
6. Bevestiging randprofiel aan constructie h.o.h. max. 800 mm
7. Siniat akoestische band (o.g.)
8. Siniat voegproducten & papieren voegband (o.g.)
9. GlasWol; dikte = 60 mm; densiteit minimaal = 15 kg/m³
10. Siniat voegwerk (o.g.)

De beplating wordt gemonteerd met verspringende verticale en horizontale voegen.
