Scheidingswand met dubbele plaat aan elke kant - Resistex - 75mm profielen - 125mm wanddikte - minerale wol (60mm)

Een lichte, onbelaste scheidingswand bestaande uit een enkel geraamte in metalen profielen met aan beide zijden 2 inbraakwerende gipsplaten met verhoogde vochtweerstand. In de spouw wordt Minerale wol (glas- of steenwol)isolatie voorzien.

Systeemprestaties en details

Totale Wanddikte: 125 mm
Profiel maat: 75 mm
Nominaal gewicht (kg/ m²): 49 kg/m²
Hoogte in normale omstandigheden – toepassingsgebied 1: 5500 mm
Hoogte in normale omstandigheden – toepassingsgebied 2: 5050 mm
Hartafstand hoofddraagprofielen (mm): 600 mm
Brandweerstandsklasse: EI 60
Brandrapport: 2012 Efectis R9103.251
Maximale hoogte: 5100 mm
Geluidsreductiewaarde (Rw): 55 dB
Rw+C: 52 dB
Rw+Ctr: 46 dB
Akoestisch rapport: AC Insul Rw=55(-3;-9)dB E-22-75-125Resistex.Resistex+MW60
Inbraakwerendheidsklasse: WK3

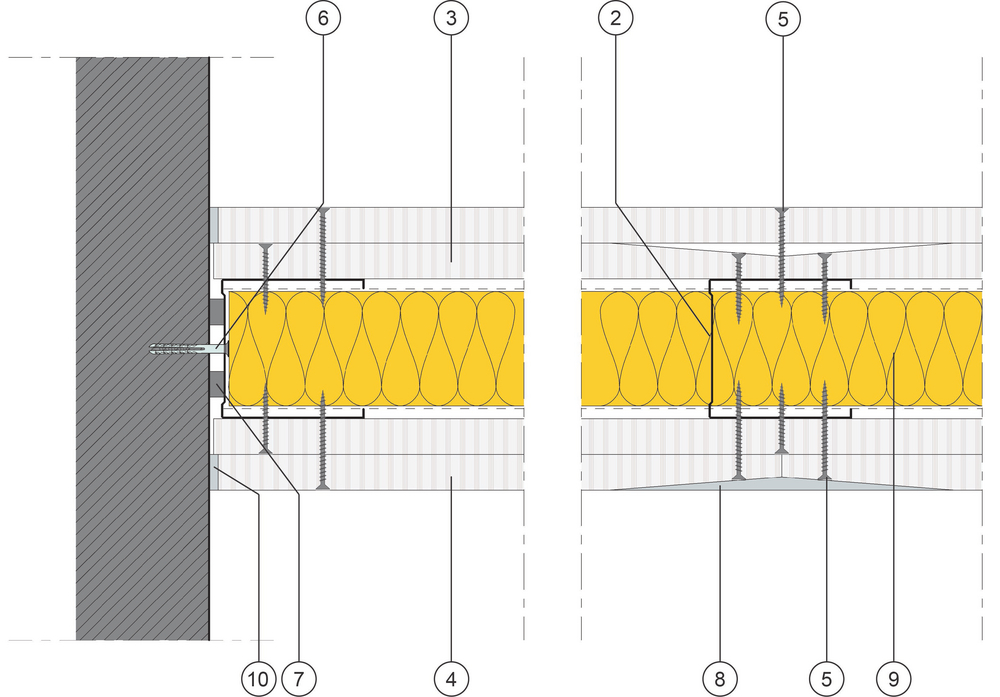

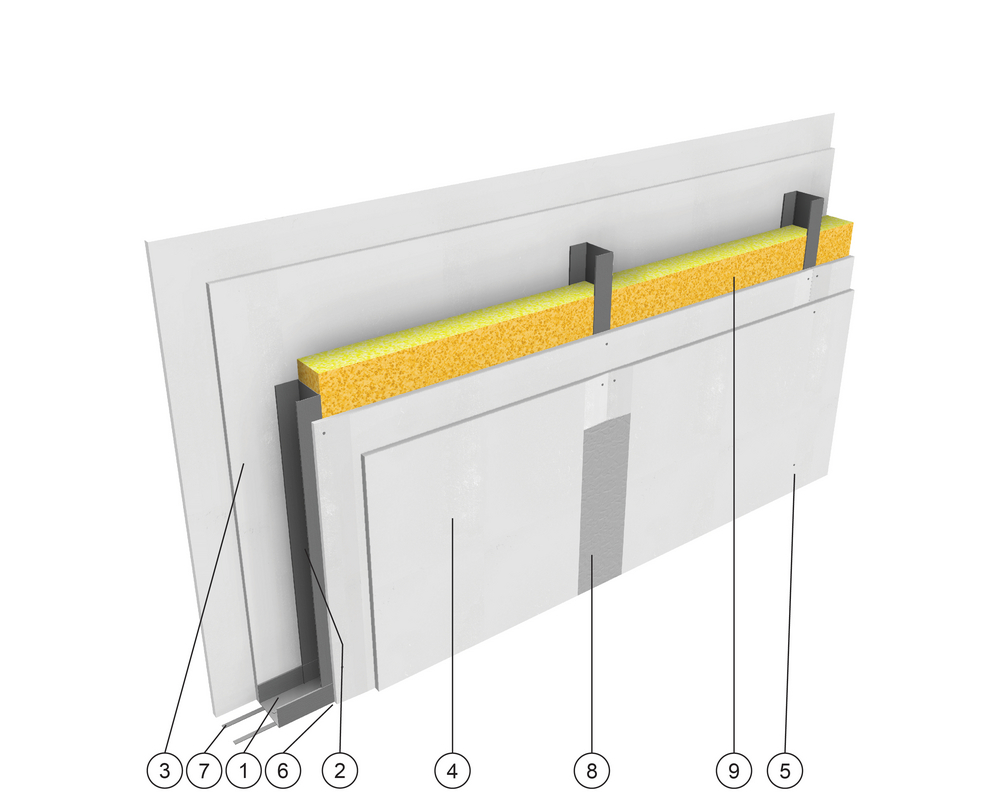

Opbouw:

1. Horizontaal profiel enkel UW 75
2. Verticaal profiel enkel CW 75 h.o.h. 600 mm
3. 2 x 12,5 mm Resistex gipsplaat type SiniatDFH2IR volgens EN520
4. 2 x 12,5 mm Resistex gipsplaat type SiniatDFH2IR volgens EN520
5. Siniat HD schroeven (o.g.); 1e laag 25 mm h.o.h. 200 mm, zichtlaag 45 mm h.o.h. 200 mm
6. Bevestiging randprofiel aan constructie h.o.h. max. 600 mm
7. Siniat akoestische band (o.g.)
8. Siniat voegproducten & papieren voegband (o.g.)
9. Glaswol; dikte = 60 mm; densiteit minimaal = 15 kg/m³
10. Siniat voegwerk (o.g.)
