Scheidingswand met dubbele plaat aan elke kant - Standaard gipsplaat - dubbel ontkoppelde profielen 50mm - 155mm wanddikte - glaswol (40mm)
Een lichte, onbelaste scheidingswand bestaande uit een geraamte van ontkoppelde dubbele metalen profielen met aan beide zijden 2 standaard gipsplaten.
Systeemprestaties en details

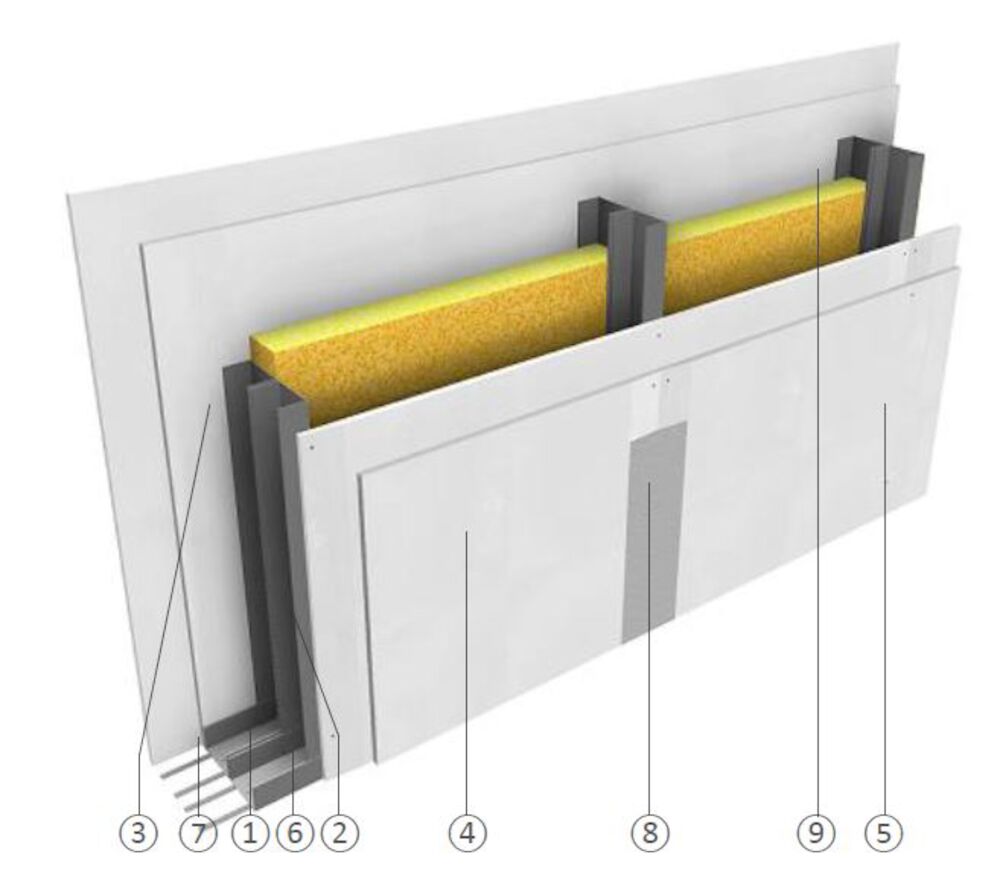

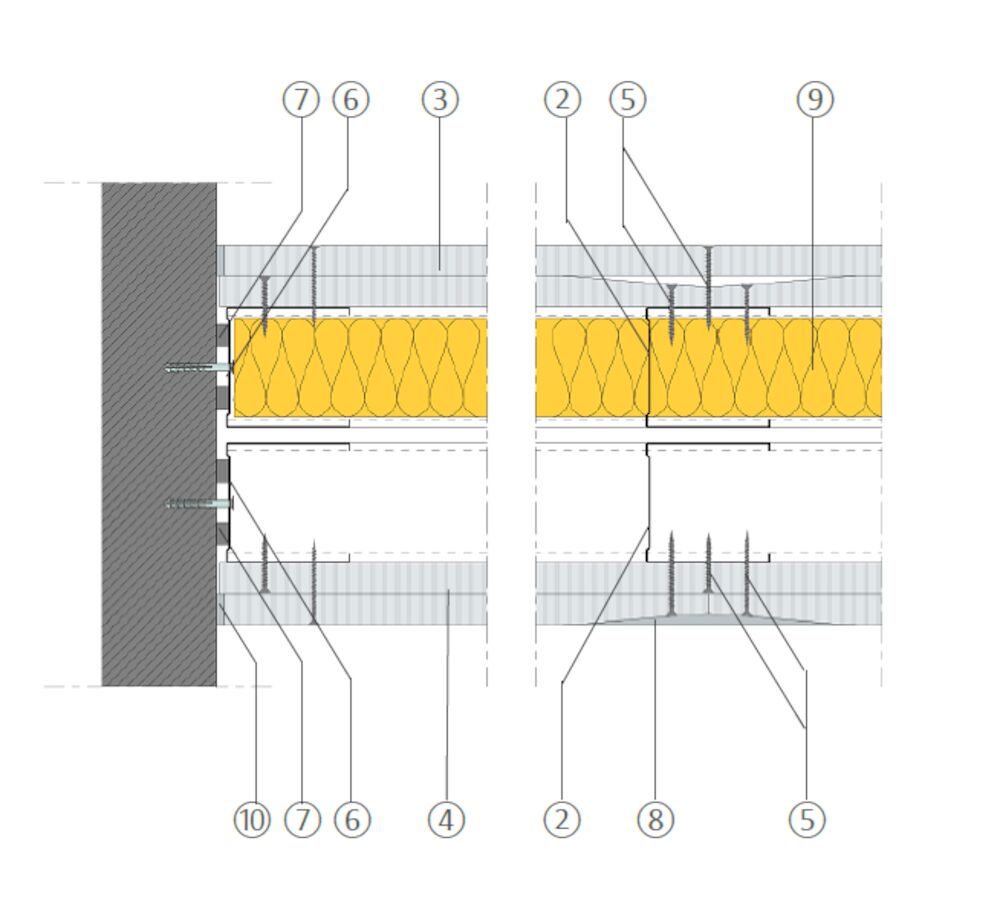

Opbouw:
1. Siniat horizontaal profiel dubbel UW 50
2. Siniat verticaal profiel dubbel ontkoppeld CW 50 h.o.h. 600 mm
3. 2 x 12,5 mm Standaard gipsplaat type A volgens EN520
4. 2 x 12,5 mm Standaard gipsplaat type A volgens EN520
5. Siniat schroeven; 1e laag 25 mm h.o.h. 750 mm, zichtlaag 35 mm h.o.h. 250 mm
6. Bevestiging randprofiel aan constructie h.o.h. max. 800 mm
7. Siniat akoestische band
8. Siniat voegproducten & papieren voegband
9. GlasWol; dikte = 40 mm; densiteit minimaal = 15 kg/m³
10. Siniat voegwerk
De beplating wordt gemonteerd met verspringende verticale en horizontale voegen.
